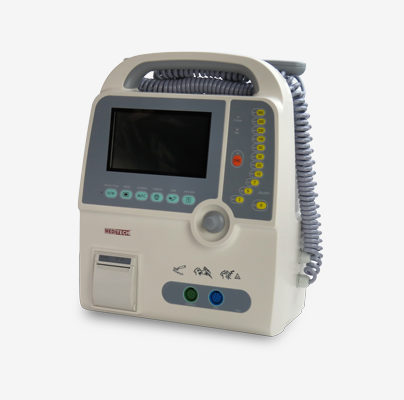

Defi 8


Defibrillator with 7" ECG monitor

Defi 8

is a compact durable light weighted defibrillator which integrated monitoring manual defibrillation.with ECG patient monitor
It is a professional Mono/biphasic defibrillator-monitor suitable for hospitals and clinics

Exchangeable Battery and Rechargeable. 2 Pcs for longer working time

Print high-quality, Low-noise,high-speed printing.

Defi 8 features

  • 2-in-1 Design

    Manual Defibrillator and Patient Monitor

  • Clear Visibility

    7 inch TFT Display

  • Comprehensive Options

    Biphasic.12 Lead ECG.SpO2.Recorder

  • Expertise in Pain Relief Techno

Technical Specifications

Screen 7 inches (16.5 cm) diagonal, non-fade.Type: color (TFT)
Display Resolution: 800 x 600 pixels.
Sweep Speed: 12.5mm/s,25mm/s,50mm/s
Defibrillator type: Manual, Synchronized, A synchronized,
Output waveform: Monophonic technology /Biphasic technology (optional)
Energy accuracy: ∠+1%
Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
Charging time: Maximum 8 seconds to 360 Joules

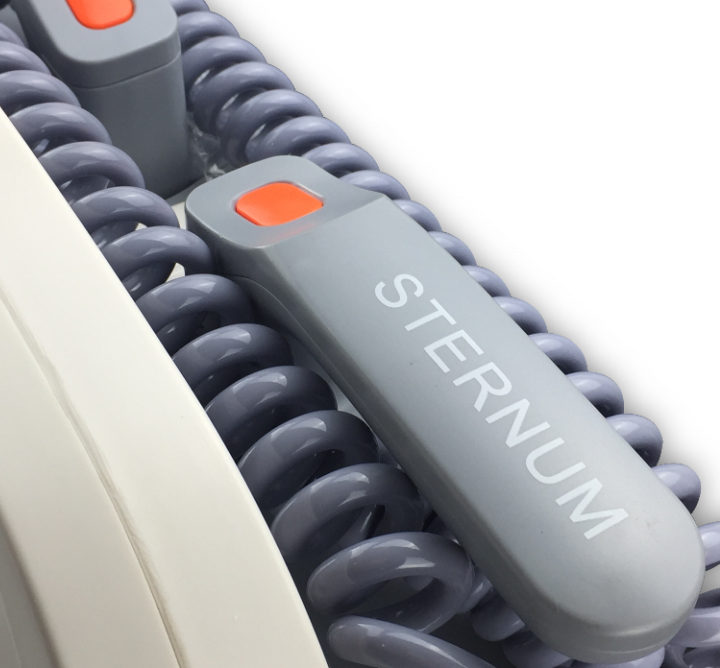

Standard Reusable external adult paddles (pediatric paddles integrated)




Double uses Paddles

Standard Reusable external adult paddles (pediatric paddles integrated)

Power requirements.
AC Power supply :110V, 60 Hz /220V, 50 Hz .DC 12V
Battery type: Rechargeable lead-acid battery/ lithium battery (optional)
Charging time: Time-Minimum of 4 hours for full charging
Battery charging: During AC Power Supply operation of the device.
Charging /Low Battery Indication: Red LED
Battery Capacity: 100% of the battery will provide 120 min of monitoring; and 30 discharges at 360 joules.



Steps for the heart defibrillation(Asynchronous DC defibrillation)

The following treatment steps only applies to the heart defibrillator. This does not apply to the machinery, cardiopulmonary or pharmacological recovery fields. The basic premise of synchronous DC defibrillation is ventricular fibrillation, which means that in the victims’ electrocardiogram have P-QRS wave or T wave defects.


1.  Turn On the defibrillator

2.  Put the conductive gel on the two electrode pads.
Remember enough gel on the pads in order to reduce transmission resistance and more energy into the victims. Too little gel possibly causes the skin burning under the pads.
Note: No gel to the hand of the electrode pads. Otherwise, it is dangerous to transfer the electric spark to the operator or doctor.

3.  Energy selection
The discharging energy confirms with the victims’ height and weight. It is around 2 joule/kgs. Also it is according to experiences and the specific aid situation.

4.  Position of electrode pads
The pads should be firmly pressed on the victims’ naked chest. Also for the safe energy transmission, it is necessary to press with around 10kilograms force. Too small force will also cause the skin burning. It is necessary to do practice on the training instrument for the correct position.

    The pads position is crucial to the successful recovery. So the current between the electrodes should transfer the chest to myocardial tissue. Only when 80% heart being defibrillating, and get to “critical mass”, possibly the fibrillation can be over.

Wrong position of electrode pads will cause large loss of current from the heart side without any effect.

Correct position of sternum electrode:
 Right Chest
 Right side of sternum
 Beneath the clavicle

Correct position of pole electrode
  Beneath the left chest
 Above apex
 Center of axillary line

Note: Don’t put the conductive gel on the electrodes on the victims’ chest. If not, the current will only flow through the electrode surface. The gel also could not be on the hand of electrode pads. If not, it may form electric spark and danger to the doctor.


5.    Protection before electrode discharge
Before the defibrillation, the doctor in charge should very clearly tell all the participants for recovery aid away from the victim, the bed and the connected instrument. All other instrument that is not used to defibrillation treat should remove from the victim. If not, it is possible to cause spark on other participants

6. Discharge the energy
Press the release key on the pads at the same time. The defibrillator will do the discharge.

7.    Observe the result
After defibrillation, it is necessary to diagnose the victim situation and  the patient monitor. According to the observing result, if necessary, more defibrillation will be done for the treatment(Repeat steps 3-7 again)
   If using artificial or  pharmacological measures for assistant, the emergency doctor should do the guarantee and be responsible for that.

8.  Make sure that the defibrillator in good condition
After the treatment, you should clean the electrode pads, electrodes and wires for next good use.


Defi 8 options and Accessories

ECG cable

MD/DEF8-C ECG Cable (3 Leads)
ECG Cable (5 Leads)
ECG Alligator Clips (Metal)

Battery

MD/DEF-RB1

Defibrillator Battery

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
● Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
● UL-recognized component.
● Can be mounted in any orientation.
● Computer designed lead, calcium tin alloy grid for high power density.
● Long service life, float or cyclic applications.
● Maintenance-free operation.
● Low self discharge.

SpO2 Cable

MD/DEF-S SpO2 Cable (Adult)
SpO2 Cable (New born)

SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 probe (Soft tip)
SpO2 External Cable
  • ECG cable

    MD/DEF8-C
  • Battery

    MD/DEF-RB1
  • SpO2 Cable

    MD/DEF-S
